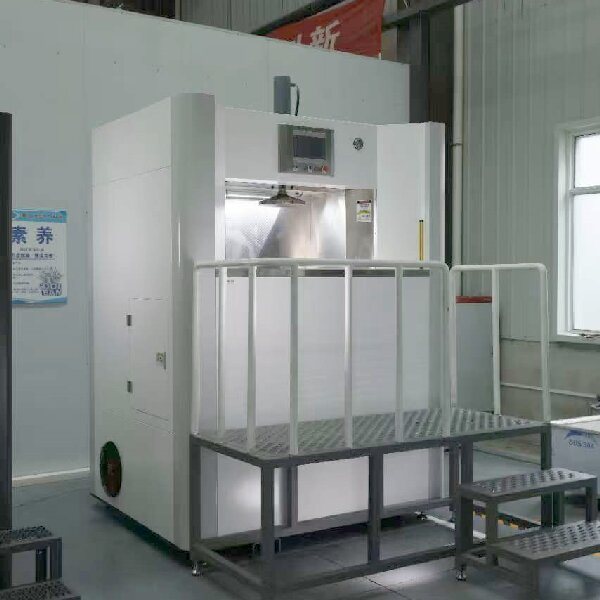

Abrasive Flow Polishing Machine KDL-522

Abrasive Flow Polishing Machine: The Ultimate Solution for Mirror Finishing of Complex Cavities

Abrasive Flow Polishing Machine are cutting-edge equipment that utilizes fluid dynamics to achieve precision polishing of complex curved surfaces. They can effectively process internal channels, intersecting holes, and irregularly shaped surfaces that are difficult to reach with traditional methods, meeting multi-level finishing requirements from micron-level deburring to mirror polishing.

Applications Cover High-End Manufacturing
This equipment demonstrates outstanding performance in aerospace fuel nozzles, medical device implants, precision mold cavities, automotive turbochargers, and other applications. It is particularly suitable for processing complex three-dimensional flow channels in difficult-to-machine materials such as carbide and titanium alloys, ensuring surface integrity for high-value-added components.

Technical Features Highlight Process Advantages
The equipment offers three core advantages: First, seamless processing, with viscoelastic abrasives capable of filling any complex cavity; second, excellent uniformity, enabling simultaneous processing of multiple irregularly shaped surfaces; and third, controllable surface quality, achieving mirror finishes below Ra 0.05μm through parameter adjustment.

The operating principle reflects innovative breakthroughs

Intelligently controlled viscoelastic abrasives, driven by pressure, flow through the workpiece cavity, creating a microscopic cutting action between the abrasive particles and the workpiece surface. Innovative media rheology control technology ensures stable flow in areas of sudden cross-sectional changes. Combined with a multi-stage pressure programming system, precise control of material removal is achieved.

The abrasive flow polisher, with its revolutionary machining concept, successfully solves the industry's challenging problem of finishing complex internal cavities, providing key technical support for improving fluid performance and product life.

Product Specifications
